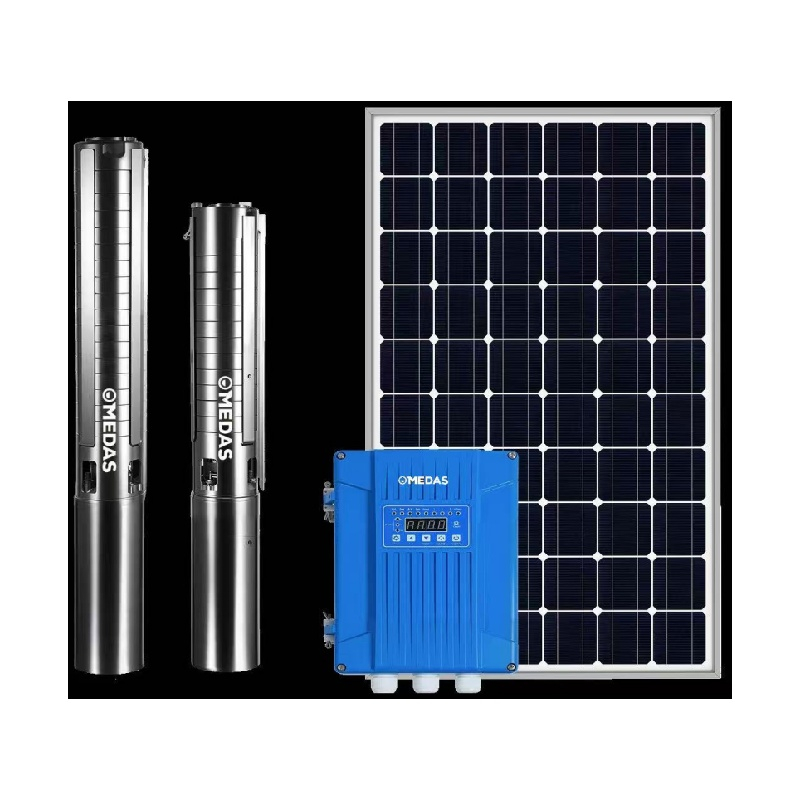

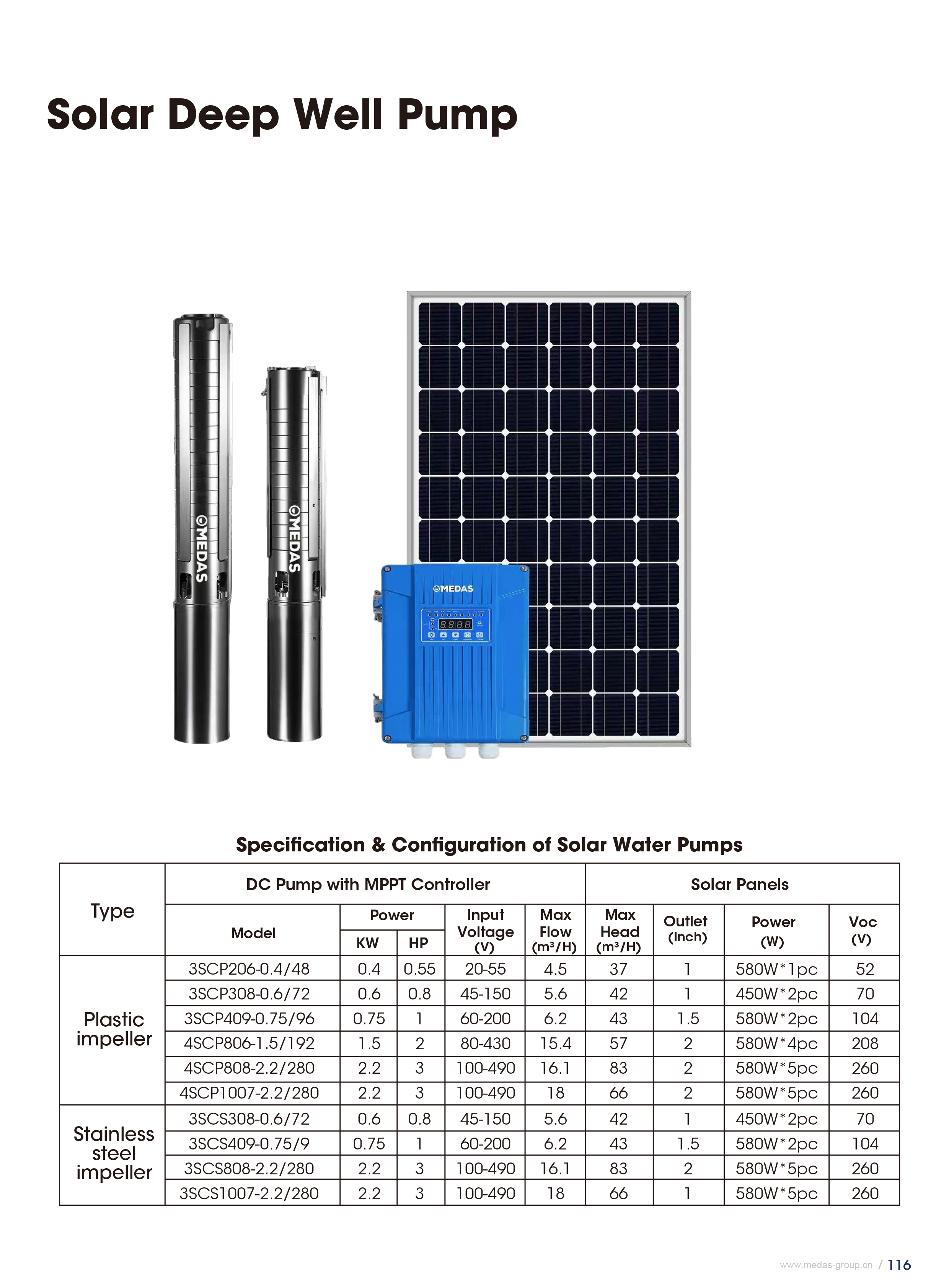

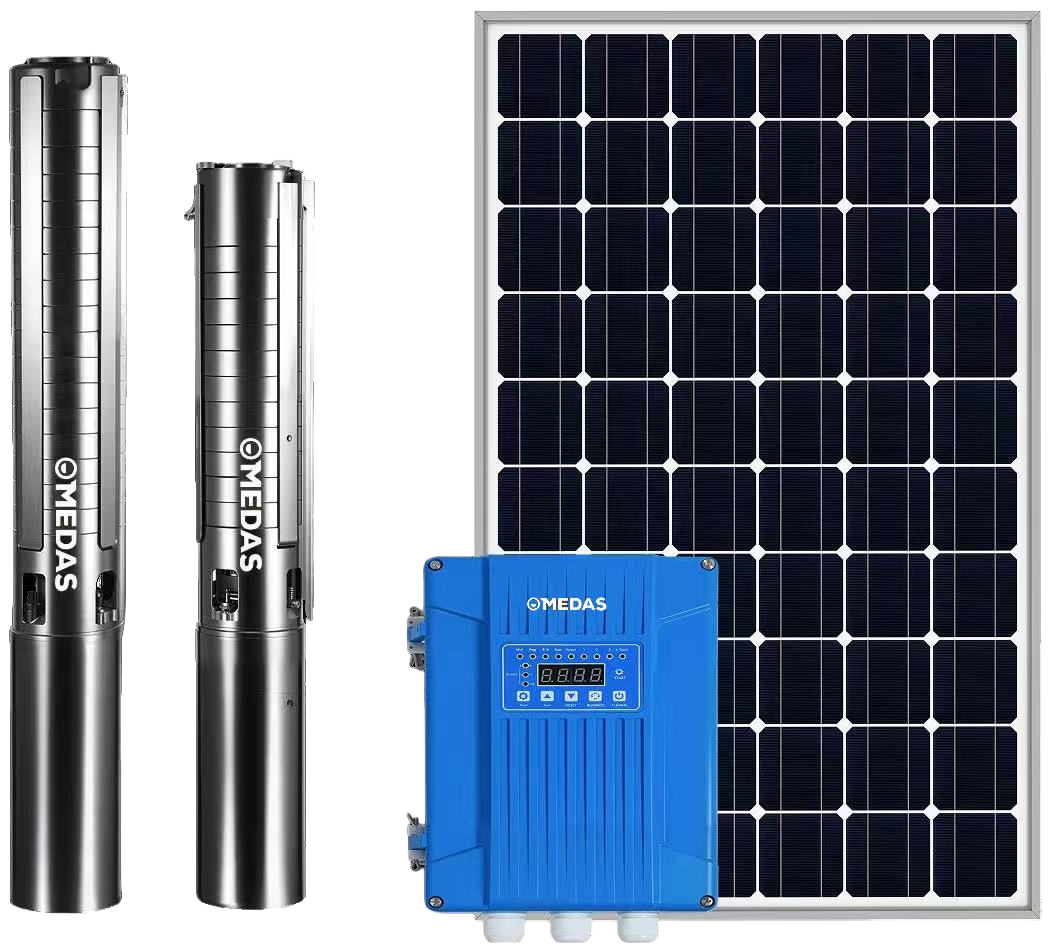

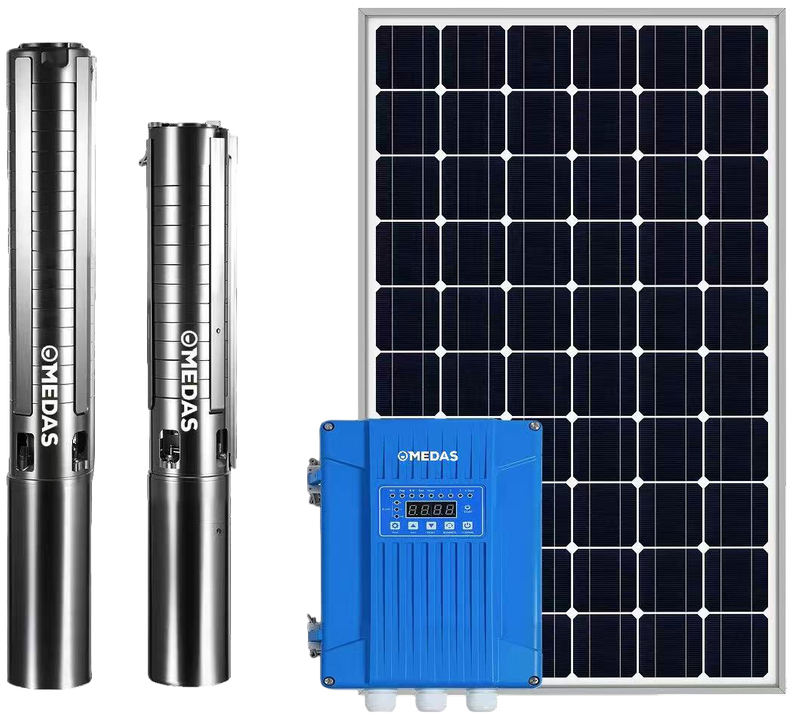

Solar Deep Well Pump

Specification &Configuration of Solar Water Pumps

Type

DC Pump with MPPT Controller

Solar Panels

Model

Power

Input
Voltage
(V)

Max
Flow
(M³/H)

Max
Head
(M)

Outlet
(Inch)

Power
(W)

Voc
(V)

KW

HP

Plastic
impeller

1

3SCP206-0.4/48

0.4

0.55

20-55

4.5

37

1”

580W*1pc

52

2

3SCP308-0.6/72

0.6

0.8

45-150

5.6

42

1

450W*2pcs

70

3

3SCP409-0.75/96

0.75

1

60-200

6.2

43

1.5

580W*2pcs

104

4

4SCP806-1.5/192

1.5

2

80-430

15.4

57

2

580W*4pcs

208

5

4SCP808-2.2/280

2.2

3

100-490

16.1

83

2

580W*5pcs

260

6

4SCP1007-2.2/280

2.2

3

100-490

18

66

2

580W*5pcs

260

Stainless
steel
impeller

1

3SCS308-0.6/72

0.6

0.8

45-150

5.6

42

1

450W*2pcs

70

2

3SCS409-0.75/9

0.75

1

60-200

6.2

43

1.5

580W*2pcs

104

3

4SCS808-2.2/280

2.2

3

100-490

16.1

83

2

580W*5pcs

260

4

4SCS1007-2.2/280

2.2

3

100-490

18

66

1

580W*5pcs

260
